100-150kgs Burning rate with Secondary burning to be use in the hospital

Oil tank with 2000Liters capacity

Items/Model TS150(PLC)

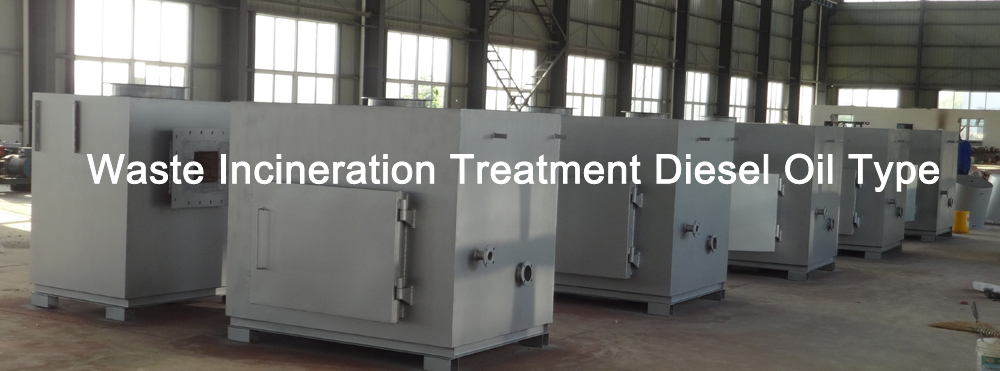

Principle Waste Incineration Treatment
Burn Rate Average 100-150 kg/hour
Feed Capacity Average 750kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Main Body Steel 8mm thickness
Chamber Material High Alumina Fire Brick Wall, 1750℃ Rate
Paint for outside face 800°C Rate
Combustion Chamber 1570L
Internal Dimensions 150x100x105cm
Secondary Chamber 750L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 210/230V 50/60Hz
Power 0.9Kw
Oil Consumption (Liter/hour) Average 14(D.O)
Gas Consumption (m3/hour) ***
Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 300L
Feed Door 80x60cm
Chimney 10Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 8500kg
External Dimensions 300x160x280cm(without chimney)
