Medical Waste Incinerator Capacity: average 50-100 kgs per hour

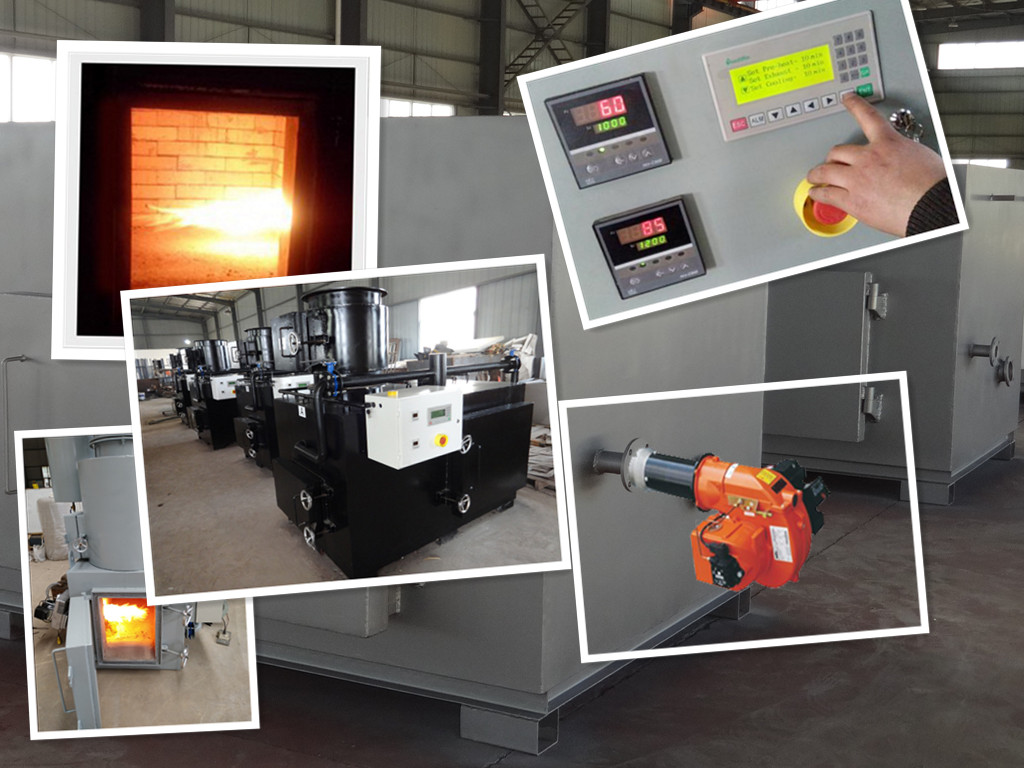

Items/Model TS50(PLC) Picture
hospital incinerator design
hospital incinerator design Principle Medical Waste Incineration Burn Rate Average 50-100 kg/hour Feed Capacity Average 100kg/feeding Control Mode PLC(Programmable Logic Controller Incinerator) Combustion Chamber 560L Internal Dimensions 100x80x70cm Secondary Chamber 280L Smoke Filter Chamber Yes Feed Mode Manual Voltage 220V Power 0.7Kw Oil Consumption (kg/hour) average 16.9 Gas Consumption (m3/hour) average 20.2 Temperature Monitor Digital Display Temperature Protection Yes Oil Tank 100L Feed Door 70x55cm Chimney 5Meter Chimney Type Stainless Steel 1st. Chamber Temperature 800℃–1000℃ 2nd. Chamber Temperature 1000℃-1200℃ Residency Time 2.0 Sec. Gross Weight 4500kg External Dimensions 230x130x155cm
Optional Part: Stainless Steel Wet scrubber
Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/
Email: sales@hiclover.com
Email: hicloversales@gmail.com
Nanjing Clover Medical Technology Co.,Ltd.
| HICLOVER Incinerator/Parts Range | Main Feature |
| Medical Waste Incinerators | HICLOVER 10-500kgs/Hr.Double Combustion Chambers |
| Single Combustion Chamber | Small, Cheap,10-20kgs/Hr. |
| Three Combustion Chambers(Optional) | 3 Chambers for high risk waste |
| Pet Cremation Equipment | For Pet(small/big) Cremation Business |
| Animal Incineration Equipment | For other animal incineration |
| Items/Model | TS100(PLC) | TS150(PLC) | TS300(PLC) | TS500(PLC) |
| Burn Rate (Average) | 100 kg/hour | 150 kg/hour | 300 kg/hour | 500 kg/hour |
| Control Mode | PLC Auto. | PLC Auto. | PLC Auto. | PLC Auto. |
| Combustion Chamber | 1200L | 1500L | 2000L | 3000L |
| Internal Dimensions | 120x100x100cm | 150x100x100cm | 170x120x100cm | 210x120x120cm |
| Secondary Chamber | 600L | 750L | 1000L | 1500L |
| Smoke Filter Chamber | Dry Scrubber | Dry Scrubber | Dry Scrubber | Dry Scrubber |
| Feed Mode | Manual | Manual | Manual | Manual |
| Voltage | 220V | 220V | 220V | 220V |
| Power | 1.38Kw | 1.69Kw | 2.57Kw | 4.88Kw |
| Diesel Oil Consumption (kg/hour) | Ave.20.4 | Ave.24.2 | Ave.33 | Ave.44 |
| Natural Gas Consumption (m3n/hour) | Ave.24.5 | Ave.29 | Ave.39.6 | Ave.52.8 |
| Temperature Monitor | Yes | Yes | Yes | Yes |
| Temperature Protection | Yes | Yes | Yes | Yes |
| Oil Tank | 200L | 300L | 500L | 500L |
| Chimney | 10Meter | 10Meter | 14Meter | 14Meter |
| Chimney Type | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 1st. Chamber Temperature | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ | 800℃–1000℃ |
| 2nd. Chamber Temperature | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ | 1000℃-1200℃ |
| Residency Time | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. | 2.0 Sec. |
| Gross Weight | 6000kg | 8500kg | 11000kg | 16000kg |
| External Dimensions | 260x150x180cm | 300x160x190cm | 400x210x300cm | 450x210x300cm |
