The forecasted feedstock loads, and daily loading rates are generally summarized as:
• Mixed general, clinical and incinerable hazardous wastes with a wide range of calorific values and densities. The wastes will consist of 100% biomedical wastes.
• Wastes either small enough to fit within a 60 litre waste sack or broken up or shredded to less than 300mm in size.
• Operation on a daytime shift basis, 5 days per week.
Items/Model
TS100(PLC)
TS150(PLC)
TS300(PLC)
TS500(PLC)
Burn Rate (Average)
100 kg/hour
150 kg/hour
300 kg/hour
500 kg/hour
Control Mode

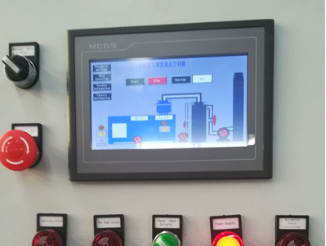

PLC Auto.
PLC Auto.
PLC Auto.
PLC Auto.
Combustion Chamber
1200L
1500L
2000L
3000L
Internal Dimensions
120x100x100cm
150x100x100cm
170x120x100cm
210x120x120cm
Secondary Chamber
600L
750L
1000L
1500L
Smoke Filter Chamber
Dry Scrubber
Dry Scrubber
Dry Scrubber
Dry Scrubber
Feed Mode
Manual
Manual
Manual
Manual
Voltage
220V
220V
220V
220V
Power
1.38Kw
1.69Kw
2.57Kw
4.88Kw
Diesel Oil Consumption (kg/hour)
Ave.20.4
Ave.24.2
Ave.33
Ave.44
Natural Gas Consumption (m3n/hour)
Ave.24.5
Ave.29
Ave.39.6
Ave.52.8
Temperature Monitor
Yes
Yes
Yes
Yes
Temperature Protection
Yes
Yes
Yes
Yes
Oil Tank
200L
300L
500L
500L
Chimney
10Meter
10Meter
14Meter
14Meter
Chimney Type
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
1st. Chamber Temperature
800℃–1000℃
800℃–1000℃
800℃–1000℃
800℃–1000℃
2nd. Chamber Temperature
1000℃-1200℃
1000℃-1200℃
1000℃-1200℃
1000℃-1200℃
Residency Time
2.0 Sec.
2.0 Sec.
2.0 Sec.
2.0 Sec.
Gross Weight
6000kg
8500kg
11000kg
16000kg
External Dimensions
260x150x180cm
300x160x190cm
400x210x300cm
450x210x300cm
The proposed incinerators shall be able to be completely packed into a series of 20ft export standard sea containers.
“Warranty will be as per the UNOPS ‘contracts for the provision of goods’ under section 4.5 of the ‘general conditions of contract’ 4.5 WARRANTIES: Unless otherwise specified in the Contract, in addition to and without limiting any other warranties, remedies or rights of UNOPS stated in or arising under the Contract, the Contractor warrants and represents that:
4.5.1 The goods, including all packaging and packing thereof, conform to the specifications of the Contract, are fit for the purposes for which such goods are ordinarily used and for any purposes expressly made known in writing in the Contract, and shall be of even quality, free from faults and defects in design, material, manufacturer and workmanship;
4.5.2 If the Contractor is not the original manufacturer of the goods, the Contractor shall provide UNOPS with the benefit of all manufacturers’ warranties in addition to any other warranties required to be provided under the Contract;
4.5.3 The goods are of the quality, quantity and description required by the Contract, including when subjected to conditions prevailing in the place of final destination;
The goods are free from any right of claim by any third-party, including claims of infringement of any 4.5.4intellectual property rights, including, but not limited to, patents, copyright and trade secrets;
4.5.5 The goods are new and unused;
4.5.6 All warranties will remain fully valid following any delivery of the goods and for a period of not less than one (1) year following acceptance of the goods by UNOPS in accordance with the Contract;
4.5.7 During any period in which the Contractor’s warranties are effective, upon notice by UNOPS that the goods do not conform to the requirements of the Contract, the Contractor shall promptly and at its own expense correct such non-conformities or, in case of its inability to do so, replace the defective goods with goods of the same or better quality or, at its own cost, remove the defective goods and fully reimburse UNOPS for the purchase price paid for the defective goods; and,
4.5.8 The Contractor shall remain responsive to the needs of UNOPS for any services that may be required in connection with any of the Contractor’s warranties under the Contract.
CE Certification Pass
