Medical Waste Incinerators for Clinics and Small Hospitals

Post author By haiwos
Post date September 29, 2024
Categories In Incinerator

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.

Item	Serie No.	Part Name
Packing List	1#	Incinerator Mainbody
	2#	Oil Tank(Deposit)
	3#	Oil Tank(Daily)
	4#	Chimney(Vertical,High Temperature)
	5#	Chimney(Horizontal,High Temperature)
	6#	Wet Scrubber
	7#	Chimney(S shape)
	8#	Chimney(Below)
	9#	Chimney(Top)

Hospital Incinerators for Medical Waste Destruction

SN	Item	Specification
1	Model	TS100
2	Burning Rate	Ave.50-100Kgs/Hour
3	Feeding Capacity	Ave.200Kgs/Feeding
4	Primary Chamber	1000 Liters
5	Secondary Chamber	540 Liters
6	Chimney	Yes
7	Wet Scrubber	Yes
8	Wet Scrubber Parameter	Dia. 100cm Hight 2500cm
9	Feeding Model	Manual
10	Power	380V 3P 50Hz
11	Power	6.0 Kw
12	Fuel Type	Diesel Oil
13	Burner	Italy
14	Oil Consumption (Diesel Oil)	Average 20.4 Kgs/Hour
15	Internal Dimensions Primary Chamber	120 x 100 x 90 cm
16	External Dimensions (Main Body)	270 x 190 x 170cm
17	Temperature Monitor	Yes
18	Oil Tank (Daily)	1.8M3
19	Oil Tank(Deposit) Parameter	10M3, Dia. 200cm Length 3500cm
20	Feeding Door	80 x 60cm
21	Chimney	6.0 M
22	Chimney Material	S.Steel
23	Weight	Ave.8500Kgs
24	1st. Chamber Temperature	800℃–1000℃
25	2nd. Chamber Temperature	1000℃-1200℃
26	Residency Time	2Sec.

2020-07-27

Medical Waste Incinerators for Clinics and Small Hospitals

Post author By haiwos
Post date September 28, 2024
Categories In Incinerator

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

Item	Serie No.	Part Name
Packing List	1#	Incinerator Mainbody
	2#	Oil Tank(Deposit)
	3#	Oil Tank(Daily)
	4#	Chimney(Vertical,High Temperature)
	5#	Chimney(Horizontal,High Temperature)
	6#	Wet Scrubber
	7#	Chimney(S shape)
	8#	Chimney(Below)
	9#	Chimney(Top)

Hospital Incinerators for Medical Waste Destruction

SN	Item	Specification
1	Model	TS100
2	Burning Rate	Ave.50-100Kgs/Hour
3	Feeding Capacity	Ave.200Kgs/Feeding
4	Primary Chamber	1000 Liters
5	Secondary Chamber	540 Liters
6	Chimney	Yes
7	Wet Scrubber	Yes
8	Wet Scrubber Parameter	Dia. 100cm Hight 2500cm
9	Feeding Model	Manual
10	Power	380V 3P 50Hz
11	Power	6.0 Kw
12	Fuel Type	Diesel Oil
13	Burner	Italy
14	Oil Consumption (Diesel Oil)	Average 20.4 Kgs/Hour
15	Internal Dimensions Primary Chamber	120 x 100 x 90 cm
16	External Dimensions (Main Body)	270 x 190 x 170cm
17	Temperature Monitor	Yes
18	Oil Tank (Daily)	1.8M3
19	Oil Tank(Deposit) Parameter	10M3, Dia. 200cm Length 3500cm
20	Feeding Door	80 x 60cm
21	Chimney	6.0 M
22	Chimney Material	S.Steel
23	Weight	Ave.8500Kgs
24	1st. Chamber Temperature	800℃–1000℃
25	2nd. Chamber Temperature	1000℃-1200℃
26	Residency Time	2Sec.

2020-07-27

Small Medical Waste Incinerator 2 combustion chambers with scrubber

Post author By haiwos
Post date September 27, 2024
Categories In Incinerator

Small Medical Waste Incinerator 2 combustion chamber with scrubber for Virus medical waste

On-Site Incineration Solution‎

Medical waste incineration involves the burning of wastes produced by hospitals, veterinary facilities,
and medical research facilities. These wastes include both infectious (“red bag”)
medical wastes as well as non-infectious, general housekeeping wastes.

Items/Model	TS30(PLC)
Picture	dav dav
Burn Rate	Average 20-30 kg/hour
Feed Capacity	Average 60kg per feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual Feeding
Voltage	220V
Power	0.5Kw
Oil Consumption (kg/hour)	Average 13.3
Gas Consumption (N.G, m3n/Hour)	Average 16
Gas Consumption (L.P.G, m3n/Hour)	Average 11.7
Temperature Monitor	Four Digital Display
Temperature Protection	Yes
Oil Tank	100L or More(Optional)
Feed Door	55x50cm
Chimney	5Meter or More(Optional)
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	4000kg
External Dimensions	175x120x140cm

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-27

Small Medical Waste Incinerator 2 combustion chambers with scrubber

Post author By haiwos
Post date September 26, 2024
Categories In Incinerator

Small Medical Waste Incinerator 2 combustion chamber with scrubber for Virus medical waste

On-Site Incineration Solution‎

Items/Model	TS30(PLC)
Picture	dav dav
Burn Rate	Average 20-30 kg/hour
Feed Capacity	Average 60kg per feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual Feeding
Voltage	220V
Power	0.5Kw
Oil Consumption (kg/hour)	Average 13.3
Gas Consumption (N.G, m3n/Hour)	Average 16
Gas Consumption (L.P.G, m3n/Hour)	Average 11.7
Temperature Monitor	Four Digital Display
Temperature Protection	Yes
Oil Tank	100L or More(Optional)
Feed Door	55x50cm
Chimney	5Meter or More(Optional)
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	4000kg
External Dimensions	175x120x140cm

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-27

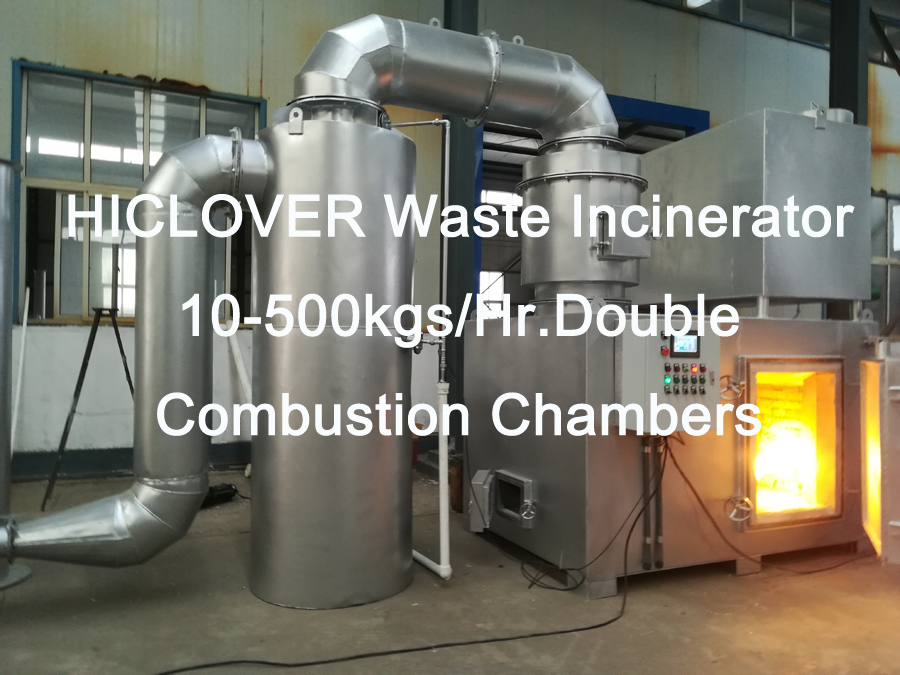

HICLOVER Waste Incinerator 10-500kgs/Hr.Double Combustion Chambers

Post author By haiwos
Post date September 25, 2024
Categories In Incinerator

HICLOVER Incinerator/Parts Range	Main Feature
Medical Waste Incinerators	HICLOVER 10-500kgs/Hr.Double Combustion Chambers
Single Combustion Chamber	Small, Cheap,10-20kgs/Hr.
Three Combustion Chambers(Optional)	3 Chambers for high risk waste
Pet Cremation Equipment	For Pet(small/big) Cremation Business
Animal Incineration Equipment	For other animal incineration
General Waste Incinerator	For MSW
Mobile Incinerator(Optional)	Small-Middle scale, mobile function by 1. )Wheel 2.)DC-Power Trolley 3.)Trailer 4.)Containerized
Wet Scrubber for Smoke Filter(Optional)	1. ) 1 Section Wet Scrubber 2.)3 Sections Wet Scrubber
1 Section Wet Scrubber	S.S304 Cooling Spray tower
3 Sections Wet Scrubber	1.)S.S304 Cooling Spray tower 2.)S.S304 Dust Scrubber 3.) S.S304 Fog and Water Separator
Feeding Door	1.) Front/Side Manual Loading 2.) Top Feeding Door(Optional) 3.) Auto. Feeding Door(Optional)
3rd Combustion Chamber(Optional)
Stainless Steel Main Body(Optional)	S.S201 or S.S304
Control Model	1.) Electric control box(Semi-automatic) 2.) PLC Auto.control box(Automatic)
Light Weight Upgrade(Optional)
W2E(Waste to Energy)(Optional)	Hot Water(Non-drinking water)
Fuel Burner	Italy Baltur Brand 4.) Both D.O and N.G/LPG(not 2in1 burner, exchange burner type)
Temperature Thermocouple	1.) K Type,Stainless Steel 1300(Standard) 2.) K Type,Corundum 1300(Optional) 3.) S Type,Platinum Rhodium 1600(Optional)
Control Case Material	1.) Steel (Standard) 2.) Stailess Steel(Optional)
Chimney/Stack	1.) Stailess Steel (Standard) 2.) Steel(Optional) 3.)Length(Optional) 4.)Thickness(Optional)

Items/Model	TS100(PLC)	TS150(PLC)	TS300(PLC)	TS500(PLC)
Burn Rate (Average)	100 kg/hour	150 kg/hour	300 kg/hour	500 kg/hour
Control Mode	PLC Auto.	PLC Auto.	PLC Auto.	PLC Auto.
Combustion Chamber	1200L	1500L	2000L	3000L
Internal Dimensions	120x100x100cm	150x100x100cm	170x120x100cm	210x120x120cm
Secondary Chamber	600L	750L	1000L	1500L
Smoke Filter Chamber	Dry Scrubber	Dry Scrubber	Dry Scrubber	Dry Scrubber
Feed Mode	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V
Power	1.38Kw	1.69Kw	2.57Kw	4.88Kw
Diesel Oil Consumption (kg/hour)	Ave.20.4	Ave.24.2	Ave.33	Ave.44
Natural Gas Consumption (m3n/hour)	Ave.24.5	Ave.29	Ave.39.6	Ave.52.8
Temperature Monitor	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes
Oil Tank	200L	300L	500L	500L
Feed Door	80x60cm	80x60cm
Chimney	10Meter	10Meter	14Meter	14Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	6000kg	8500kg	11000kg	16000kg
External Dimensions	260x150x180cm	300x160x190cm	400x210x300cm	450x210x300cm

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-27

Needle Incinerator(Needle & Syringe Destroyers) and Micro Incinerator for COVID 19 waste

Post author By haiwos
Post date September 24, 2024
Categories In Incinerator

Needle Incinerator(Needle & Syringe Destroyers) and Micro Incinerator for COVID 19 waste.

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-21

Smallest Waste Incinerator for PPE waste face mask glove waste

Post author By haiwos
Post date September 23, 2024
Categories In Incinerator

Smallest Waste Incinerator for PPE waste face mask glove waste

Ave 400kgs for shipping, 1 chamber, 1 burner ,1 air fan, 1 control box, 1.5Meter chimney

ave 10kgs per hour, 100kgs per day(10hr/day working)

Equipment Technical Specifications
Model	YD-10
Feed Capacity	Average 20 kgs per feeding
Burning Rate	Average 10 kgs per hour
Burning Time per Feed	2 hours
Voltage	220V
Power	0.5Kw
Fuel	Diesel oil
Burner	Italy Burner
Feed Mode	Manual
Fuel consumption (Oil)	Ave. 4.2 Kgs/Hour
External Dimensions	Dia.100 x 130cm (mainbody)
Internal Dimensions	Dia.50 x 80cm
Waste combustion chamber	200Liters
Oil Tank Capacity	100 Liters
Door Opening	35 x 35cm
Chimney	1.5M
Gross Weight	Ave.400kgs
Chamber Material	Refractory Concrete&Ceramic Fiber
Max. Heat Value	42,000Kcal/Hr.
Operation Technical Specifications
Chamber temperature	8000C -10000C
Chamber Anti-Rate	14000C
Burning efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-17

Incinerator YD-150 with Stainless Steel Wet scrubber-Cooling Spray tower

Post author By haiwos
Post date September 22, 2024
Categories In Incinerator

Model YD-150

Burning Rate Average 150 kgs/hour

Feed Capacity Average 300 kgs/feeding

Primary Combustion Chamber 1500 Liters

Secondary Combustion Chamber 500 Liters

Mix Combustion Chamber Yes

Smoke Filter Chamber Yes

Feed Mode Manual

Voltage 220V/380V

Power 1.03Kw

Fuel Type Diesel Oil/ Natural Gas/LPG

Burner Italy Original

Oil Consumption (Diesel Oil) 17–36 kg/hour

Gas Consumption (Natural Gas) 11–36.7 m3/hour

Internal Dimensions 150 x 100 x 96cm (primary chamber)

External Dimensions 240 x 170 x 380cm (without chimney)

Temperature Monitor Yes

Oil Tank Capacity(if oil fuel) 300 Liters

Door Opening 59 x 81cm

Chimney Length 10.0 Meters

Chimney Type Stainless Steel

Equipment Gross Weight 7500 kgs

before start the 2nd burner, full close all air valve on the 1st chamber. other operation keep same.

reason: at the first 10-20 min burnning the plactic waste, deflagration combustion in the chamber.

after 10-20 min, gradually increase air injection by air valve on the 1st chamber.

meanwhile, proposal 20-30 min burnning of the 1st chamber, stop the 1st burner(stop fire only, the fan inside the burner
still working), let the plastic burn itself(Spontaneous combustion) to save diesel oil.

a small waste to energy project to turn municipal solid waste

Model	YD-150
Main Product List	Primary Combustion Chamber
	Secondary Combustion Chamber
	Mix-Combustion Chamber
	Smoke Filter Chamber(Dry Scrubber)
	Incinerator Control Case(PLC Auto.Type)
	Chimney:10.0Meters *(upgrade to Stainless Steel, free cost)
	Italy oil/gas burner: 02 sets
	Oil Tank (if oil fuel): 300Liters
	Optional Part: Stainless Steel Wet scrubber(Cooling Spray tower) insertpic 6 insertpic 744c

into electricity. The project is to cater for a local council with a population of around 60,000 people and will serve as a

pilot project. If project is successful than other such plants will be installed in other towns and villages. The villages

will all cater for the MSW in their locality instead of a central large incineration plant to cate for the whole county.for a 7 ton per

hour plant on turn-key basis with your best price and delivery including full technical specifications, literature, drawings

and best export price.

Provided you can offer a good solution there is a chance of selling many more such plants for the local councils of the same

country, so this is an excellent chance for you to join forces with our company for market penetration with your products in

Europe.

1. TS100 model with dry scrubber system
2. YD150 with a wet scrubber system

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

2020-07-14

Incinerator burn medical and bio waste

Post author By haiwos
Post date September 21, 2024
Categories In Incinerator

Incinerator burn medical and bio waste

Items/Model TS100(PLC)


insertpic 07 14 01 42 08

insertpic 282e07 14 01 42 08

Principle Medical Waste Incineration Treatment

Burn Rate Average 100 kg/hour

Control Mode PLC(Programmable Logic Controller Incinerator)

Combustion Chamber 1200L

Internal Dimensions 120x100x100cm

Secondary Chamber 600L

Smoke Filter Chamber Yes(Dry Scrubber)

Feed Mode Manual

Voltage 220V/380V

Power 0.7Kw

Oil Consumption (kg/hour) average 20.4

Gas Consumption (m3/hour) ***

Temperature Monitor Digital Display

Temperature Protection Yes

Oil Tank 200L

Feed Door 80x60cm

Chimney 10Meter

Chimney Type Stainless Steel

1st. Chamber Temperature 800℃–1000℃

2nd. Chamber Temperature 1000℃-1200℃

Residency Time 2.0 Sec.

Gross Weight 6000kg

External Dimensions 260x150x180cm
