Incinerator for Animal Crematory Pig Farm Model A1200

*** 3 sets Burners
*** Good for animals or big pets
*** Double Combustion chamber
*** stainless steel chimney
*** Italy made oil burners
*** 1200Liters(1.2m3) big chamber

Model	A1200
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 100 kgs/feeding
Primary Combustion Chamber	1200 Liters
Secondary Combustion Chamber	500 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes(Dry Scrubber)
Feed Mode	Manual
Voltage	220V/380V
Fuel Type	Diesel Oil
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 34.4 kg/hour
Gas Consumption (Natural Gas)	***
Internal Dimensions	130x100x90cm (primary chamber)
External Dimensions	220x180x360cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	500 Liters
Door Opening	55 x 80cm
Chimney Length	10.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	7500 kgs
Operation Technical Specifications
Primary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

Incinerator for Animal Crematory Pig Farm Model A1200

*** 3 sets Burners
*** Good for animals or big pets
*** Double Combustion chamber
*** stainless steel chimney
*** Italy made oil burners
*** 1200Liters(1.2m3) big chamber

Model	A1200
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 100 kgs/feeding
Primary Combustion Chamber	1200 Liters
Secondary Combustion Chamber	500 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes(Dry Scrubber)
Feed Mode	Manual
Voltage	220V/380V
Fuel Type	Diesel Oil
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 34.4 kg/hour
Gas Consumption (Natural Gas)	***
Internal Dimensions	130x100x90cm (primary chamber)
External Dimensions	220x180x360cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	500 Liters
Door Opening	55 x 80cm
Chimney Length	10.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	7500 kgs
Operation Technical Specifications
Primary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

*** Primary combustion chamber & secondary combustion chamber
*** Smoke filter chamber(dry scrubber)
*** stainless steel chimney
*** PLC auto. control
*** Italy made oil or gas burner(diesel oil/natural gas/lpg)
*** temperature display and control
*** high temperature firebrick,etc

*** Primary combustion chamber & secondary combustion chamber
*** Smoke filter chamber(dry scrubber)
*** stainless steel chimney
*** PLC auto. control
*** Italy made oil or gas burner(diesel oil/natural gas/lpg)
*** temperature display and control
*** high temperature firebrick,etc

*** Double Combustion Chamber
*** PLC auto control operation
*** stainless steel chimney
*** smoke filter chamber
*** Italy oil/gas burner
*** whole design, mini. installation working
*** cheaper cost
*** long lifetime design
*** better material and spare parts

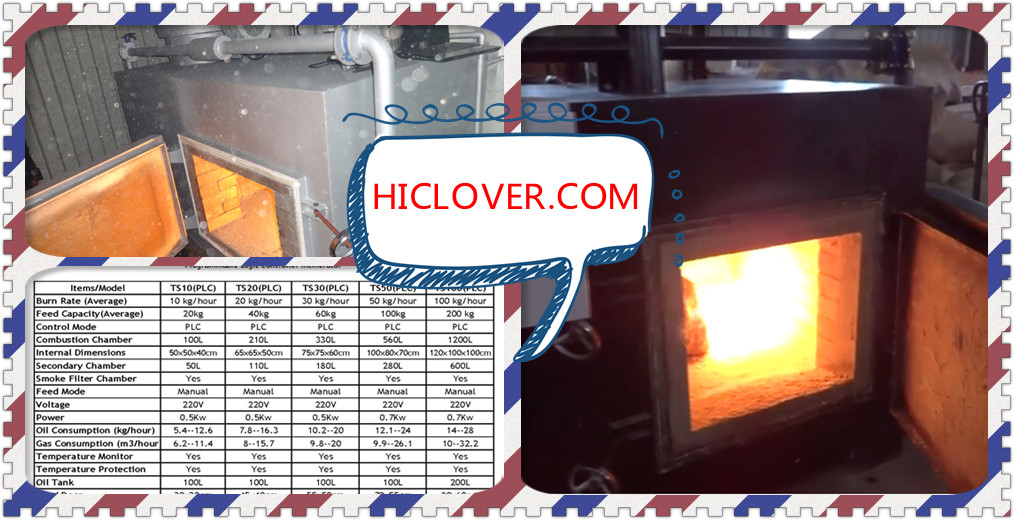

Items/Model	TS30(PLC)
Burn Rate	Average 30 kg/hour
Feed Capacity	Average 60kg per feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual Feeding
Voltage	220V
Power	0.5Kw
Oil Consumption (kg/hour)	Average 13.3
Gas Consumption (N.G, m3n/Hour)	Average 16
Gas Consumption (L.P.G, m3n/Hour)	Average 11.7
Temperature Monitor	Four Digital Display
Temperature Protection	Yes
Oil Tank	100L or More(Optional)
Feed Door	55x50cm
Chimney	5Meter or More(Optional)
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	4000kg
External Dimensions	175x120x140cm

*** Double Combustion Chamber
*** PLC auto control operation
*** stainless steel chimney
*** smoke filter chamber
*** Italy oil/gas burner
*** whole design, mini. installation working
*** cheaper cost
*** long lifetime design
*** better material and spare parts

Items/Model	TS30(PLC)
Burn Rate	Average 30 kg/hour
Feed Capacity	Average 60kg per feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual Feeding
Voltage	220V
Power	0.5Kw
Oil Consumption (kg/hour)	Average 13.3
Gas Consumption (N.G, m3n/Hour)	Average 16
Gas Consumption (L.P.G, m3n/Hour)	Average 11.7
Temperature Monitor	Four Digital Display
Temperature Protection	Yes
Oil Tank	100L or More(Optional)
Feed Door	55x50cm
Chimney	5Meter or More(Optional)
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	4000kg
External Dimensions	175x120x140cm

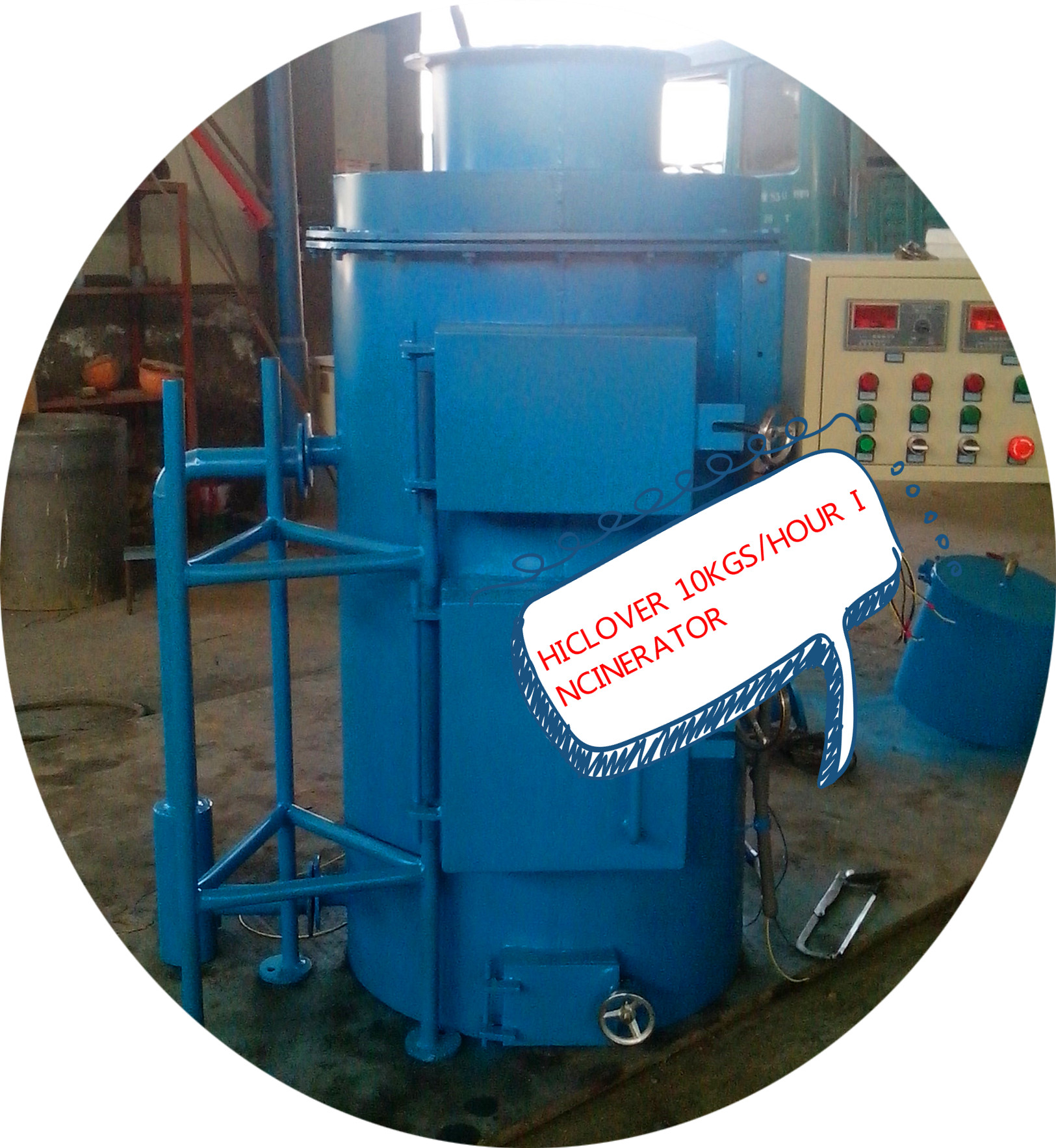

Smallest waste incinerator for small hospital
average 10kgs per hour.
with double(2) sets burner.

Smallest waste incinerator for small hospital
average 10kgs per hour.
with double(2) sets burner.

Smallest waste incinerator for small hospital
average 10kgs per hour.
with double(2) sets burner.

Model	A1500 (customer made model)
Internal Dimensions	150 x 100 x 96cm
Suit for Animal	Cat – yes	Dog – yes	Pig – yes	Cow – no
Main Product List	Primary Combustion Chamber
	Secondary Combustion Chamber
	Mix-Combustion Chamber
	Wet Scrubber( WashingTower)(Optional Part)
	Incinerator Control Case
	Chimney:10.0Meters *(upgrade to Stainless Steel, free cost)
	Italy oil burner: 03 sets
	Oil Tank : 500Liters

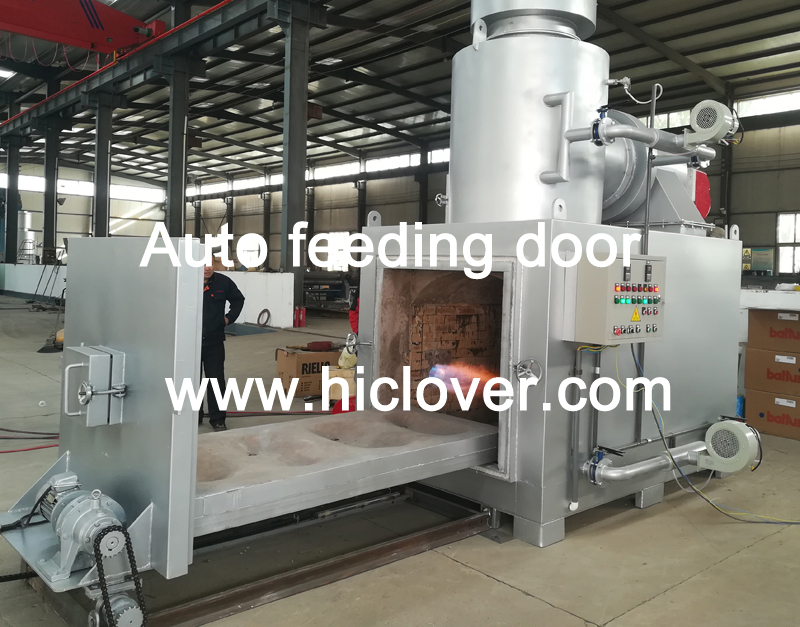

Optional Part	Movable platform & Auto. Door and Independent air supply system at bottom

Burning Rate	Average 100 kgs/hour
Feed Capacity	Average 150 kgs/feeding
Primary Combustion Chamber	1500 Liters
Secondary Combustion Chamber	500 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes(Wet Scrubber) (optional)
Feed Mode	Manual
Voltage	380V
Fuel Type	Diesel Oil
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 53 kg/hour
Gas Consumption (Natural Gas)	***
Internal Dimensions	150 x 100 x 96cm (primary chamber)
External Dimensions	240 x 170 x 380cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	500 Liters
Door Opening	90 x 80cm
Chimney Length	10.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	9000 kgs
