50kgs per hour incinerator with two chambers suppliers from china

*Aveage 50kgs per hour
*Double chamber and double burner
*900liters primary combustion chamber
*Italy burner
*Stainless steel chimney

Model	YD-50
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 150 kgs
Primary Combustion Chamber	900 Liters
Secondary Combustion Chamber	300 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes
Feed Mode	Manual
Voltage	220V/380V
Power	0.7Kw
Fuel Type	Diesel Oil/ Natural Gas/LPG
Burner	Italy Original
Oil Consumption (Diesel Oil)	12.1–23.9 kg/hour
Gas Consumption (Natural Gas)	9.9–26.1 m3/hour
Internal Dimensions	120 x 90 x 85cm (primary chamber)
External Dimensions	200 x 160 x 310cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	300 Liters
Door Opening	62 x 80cm
Chimney Length	5.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	5500 kgs
Operation Technical Specifications
Primary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

30kgs per hour(average) medical waste incinerator, design dual
combustion chambers(primary chamber and secondary chamber),
smoke filter chamber, PLC auto. control system, 0.33m3(330liters)
primary combustion chamber, italy oil or gas fuel burner. for small
hospital medical waste treatment.

Buy waste incinerator, find hiclover

30kgs per hour(average) medical waste incinerator, design dual
combustion chambers(primary chamber and secondary chamber),
smoke filter chamber, PLC auto. control system, 0.33m3(330liters)
primary combustion chamber, italy oil or gas fuel burner. for small
hospital medical waste treatment.

Buy waste incinerator, find hiclover

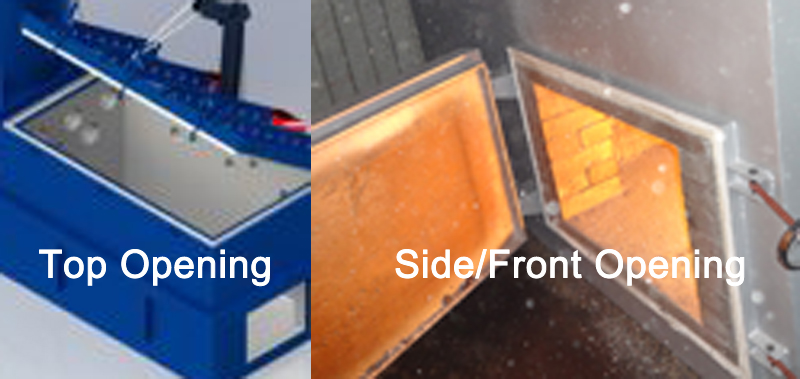

Waste Incinerator Door: Side/Front Opening Door VS. Top Opening Door

Waste Incinerator Door: Side/Front Opening Door VS. Top Opening Door

This equipment quality structural for kinds of site, like hospital, environmental department,
animal cremation agencies, etc.
HICLOVER Incinerator supply updated models with dual combustion chamber,
mix-combustion chamber and smoke filter
chamber with refractory lines, and the combustion chamber temperature up to 1200 deg C.

This equipment quality structural for kinds of site, like hospital, environmental department,
animal cremation agencies, etc.
HICLOVER Incinerator supply updated models with dual combustion chamber,
mix-combustion chamber and smoke filter
chamber with refractory lines, and the combustion chamber temperature up to 1200 deg C.

Incinerator Model A1500, Overview

This model is big-scale animal cremation equipment for big animals.
Construction is dual/double combustion chamber with 03 units oil/gas burner,
batch load incineration equipment. Animal feed chamber is 1500Liters (Model: A1500).
Primary & Secondary combustion chambers and included mix-combustion chamber,
smoke filter chamber with firebrick and Refractory Concrete chamber. Batch load on
the bottom of chamber. Incinerator panel control suit for local operation.

Model	A1500
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 150 kgs
Primary Combustion Chamber	1500 Liters
Secondary Combustion Chamber	500 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes
Feed Mode	Manual
Voltage	220V/380V
Fuel Type	Diesel Oil/ Natural Gas/LPG
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 34 kg/hour
Gas Consumption (Natural Gas)	Average 41 m3n/hour
Internal Dimensions	150 x 100 x 96cm (primary chamber)
External Dimensions	240 x 170 x 380cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	300 Liters
Door Opening	59 x 81cm
Chimney Length	10.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	7500 kgs
Operation Technical Specifications
Primary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

Animal Crematory Incinerator

Capacity: Average 80kgs per feeding

Item	Specification
Model	A900
Internal Dimensions	120 x 90 x 85 CM
Suit for Animal	Cat – yes	Dog – yes	Pig – small	Cow – no
Main Product List	Primary Combustion Chamber
	Secondary Combustion Chamber
	Mix-Combustion Chamber
	Smoke Filter Chamber
	Incinerator Control Case
	Chimney:5.0Meters *(upgrade to Stainless Steel, free cost)
	Italy oil/gas burner: 03 sets
	Oil Tank (if oil fuel): 500Liters

Model	A900
Burning Rate	Average 30 kgs/hour
Feed Capacity	Average 80 kgs/feeding
Primary Combustion Chamber	900 Liters
Secondary Combustion Chamber	300 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Yes
Feed Mode	Manual
Voltage	220V/380V
Power	1.5 Kw
Fuel Type	Diesel Oil/ Natural Gas/LPG
Burner	Italy Original
Oil Consumption (Diesel Oil)	Average 34 kg/hour
Gas Consumption (Natural Gas)	Average 41 m3/hour
Internal Dimensions	120 x 90 x 85 cm (primary chamber)
External Dimensions	200 x 160 x 310 cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	500 Liters
Door Opening	60 x 80cm
Chimney Length	5.0 Meters
Chimney Type	Stainless Steel
Combustion Chamber Material	Refractory Concrete Cement(No Brick)
Equipment Gross Weight	6000 kgs
Operation Technical Specifications
Primary Chamber Temperature	800℃–1000℃
Secondary Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Burning Efficiency	＞98%
Waste Lower Calorific Power	3000Kcal

This model is small-scale waste incineration equipment for small waste output.
Construction is dual/double combustion chamber with 02 units oil/gas burner.
Waste feed chamber is around 900Liters (0.9m3, YD-50). Primary & Secondary
combustion chambers and included mix-combustion chamber. Waste load on the
bottom of chamber. Incinerator panel control suit for local operation.

Model	YD-50 with wet scrubber
Burning Rate	Average 50 kgs/hour
Feed Capacity	Average 100 kgs
Primary Combustion Chamber	900 Liters
Secondary Combustion Chamber	200 Liters
Mix Combustion Chamber	Yes
Smoke Filter Chamber	Wet Scrubber(WashingTower)
Feed Mode	Manual
Voltage	220V
Power	7 Kw
Fuel Type	Diesel Oil/ Natural Gas/LPG
Burner	Italy Original
Oil Consumption (Diesel Oil)	16.9 kg/hour
Gas Consumption (Natural Gas)	***
Internal Dimensions	120x90x85cm (primary chamber)
External Dimensions	400x200x230cm (without chimney)
Temperature Monitor	Yes
Oil Tank Capacity(if oil fuel)	300 Liters
Door Opening	62 x 68cm
Chimney Length	5.0 Meters
Chimney Type	Stainless Steel
Equipment Gross Weight	6000 kgs
Operation Technical Specifications
Primary Chamber Temperature		800℃–1000℃
Secondary Chamber Temperature		1000℃-1200℃
Residency Time		2.0 Sec.
Burning Efficiency		＞98%
Waste Lower Calorific Power		3000Kcal
