It features unique and advanced merits with compact size, high burning effect, reasonable burning technology, high degree of non-harm etc.It is an ideal choice for waste treatment of hospitals, hotels and various areas.

Features:

(1) Gasifiedpyrolysis incineration is used for burning many kinds of waste.
(2) Waste can be burned once everyday by gasified incineration.
(3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,dioxin etc.
(4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
(5) Compact structure and small land occupation.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

A mechanical particulate collector must be incorporated after secondary combustion chamber for removal of
particulate pollutants entrained in the flue gas stream. The particulate collectors may include any of the following or a combination
Overall plant layout
Feed chamber/charging
Primary combustion chamber
Particulate scrubbers
Acid gas scrubbers.
The stack/chimney.
Minimum capacity of primary chamber = 0.10cubic meters
Burn rate (rate of waste incineration) = 10 kg per hour
Should have a full width counterbalance loading door allowing easy access to the main chamber for loading and removing ash.
Controlled hygienic mechanical feeding that does not negatively influence the air temperature in the primary and
secondary chambers of the incinerator shall be used.This chamber should be equipped with burners that use low sulphur fuel.
The chamber should ensure a minimum exit temperature of 850 degrees centigrade.
This unit should operate at over 1100 deg C to ensure complete combustion.
This chamber should be equipped with burners that use low sulphur fuel.
Heavy-duty steel casing
High quality refractory lining and insulation
Large full size top load door and liquid retention sill.
1 x oil fired ignition burners operated on/off
Combustion efficiency (C.E) shall be at least 99.00% where C.E = %Carbon dioxide x 100 / [% Carbon dioxide + carbon monoxide]
The temperature of the primary chamber shall be 800 +/- 50 degrees centigrade
The secondary chamber gas residence time shall be at least 1 second at 1050 +/- 50 degrees centigrade with 3% oxygen in the stack gas.
Opacity of the smoke must not exceed 20% viewed from 50 metres with naked eyes.
All the emission to the air other than steam or water vapour must be odourless and free of mist, fume and droplets.
A 99.99% destruction and removal efficiency (DRE) for each principal organic hazardous constituent (POHC) in the waste feed where DRE [ ( Win – Wout) /Win ] x
100 where Win = mass feed rate of the POHC in the waste stream fed to incinerator and Wout = mass emission rate of POHC in the stack prior to the release to the atmosphere.
The average dioxin and furan concentration in the emission should not exceed 80mg/m3 total dioxins and furans if measured for a period of 6 to 16 hours.

Presently, we supply different series for local customer requirements and design updated incinerator with our leading technology. The updated design feature of our range of incinerators make them one of the most cost effective in the world.
Key Features:
* All models with Dual combustion chamber.
* Stainless Steel chimney/stack, long lifetime.
* High temperature, long lifetime of incinerator.
* Free or minimum installation on site.
* High burn rate, from 10kgs to 600kgs per hour, up to 10ton per day.
* PLC Control Plane for Intelligent operation.
* New Design for pet animal cremation business.
* One year warranty on incinerator and parts in stock.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Mobile Containerized Incinerator Units to properly incinerate Solid Waste, Petroleum Oil, and Lubricants. Each Unit will be in accordance
to the technical specifications/ operational capacity as defined below. Additionally, each Unit will provide Operation Manuals and Training
Material.PROCESS AT LEAST 1 METRIC TON OF WASTE PER DAY
OPERABLE BY 1 PERSON, WITH NO TRAINING REQUIRED
REGULAR MAINTENANCE CAN BE COMPLETED BY 1 PERSON WITH LIMITED TRAINING
REGULAR MAINTENANCE SHOULD NOT EXCEED 1-HOUR PER DAY
COMPLIES WITH EURO / OR US-EPA EMISSION STANDARDS
ABILITY TO INCINERATE WASTE PETROLEUM, OILS, AND LUBRICANTS
TEMPRATURES DURING THE COMBUTION PROCESS MUST EXCEED 1,500 °F FOR AT LEAST 1-HOUR
CAN BE TRANSPORTED TO AND FROM DEPLOYMENT LOCATION IN A 20-FOOT OR SMALLER SHIPPING ISO CONTAINER
CAPABLE OF 24 HOURS OF CONTINUOUS USE
AUTOMATIC LOADING SYSTEM
AUTOMATED ASH REMOVAL SYSTEM
GAS SCRUBBING SYSTEM
95% REDUCTION OF SOLID WASTE
OPERABLE WITH DIESEL, JP8, OR FUEL OIL
CAPABLE OF BURNING 4 UNITS OF WASTE PER UNIT OF FUEL
ABLE TO INCINERATE COMBUSTIBLE WASTE TO INCLUDE: PAPER, PLASTIC, CARDBOARD, FOOD, USED OILS, SLUDGE, OILY RAGS, AND WOOD PALLETS.
NO PRE-TREATMENT OF WASTE REQUIRED
VENDOR REPAIR OFFERED AT POINT OF SHIPMENT
FIVE (5) YEAR COMPONENT WARRANTY FROM DATE OF ACCEPTANCE Technical Specifications
OPERATION MANUAL AND TRAINING MANUAL FOR EACH INCINERATOR PROVIDED AS PART OF BID PACKAGE
SET UP AND INSTALLATION INSTRUCTION MANUALS PROVIDED AS PART OF BID PACKAGE
BLUE PRINT/ SCHEMATIC PROVIDED THAT OUTLINES THE PHYSICAL DIMENSIONS OF THE 20-FOOT CONTAINERIZED INCINERATORS
DELIVERY PLAN TO EXPLAIN THE MOVEMENT OF 20-FOOT INCINERATORS FROM POINT OF ORIGIN TO CAMP ARIFJAN, KUWAIT
MOBILITY PLAN TO EXPLAIN HOW TO MOVE 20-FOOT INCINERATORS FROM BASE TO BASE WITHIN US ARMY CENTRAL COMMAND THEATRE
INCINERATORS COMPOSED WITH HEAVY DUTY WELDED CONSTRUCTION
EACH INDIVIDUAL UNIT OPERATED AND TRANSPORTED IN A 20-FOOT ISO SHIPPING CONTAINER

Presently, we supply different series for local customer requirements and design updated incinerator with our leading technology. The updated design feature of our range of incinerators make them one of the most cost effective in the world.
Key Features:
* All models with Dual combustion chamber.
* Stainless Steel chimney/stack, long lifetime.
* High temperature, long lifetime of incinerator.
* Free or minimum installation on site.
* High burn rate, from 10kgs to 600kgs per hour, up to 10ton per day.
* PLC Control Plane for Intelligent operation.
* New Design for pet animal cremation business.
* One year warranty on incinerator and parts in stock.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Mobile Containerized Incinerator Units to properly incinerate Solid Waste, Petroleum Oil, and Lubricants. Each Unit will be in accordance
to the technical specifications/ operational capacity as defined below. Additionally, each Unit will provide Operation Manuals and Training
Material.PROCESS AT LEAST 1 METRIC TON OF WASTE PER DAY
OPERABLE BY 1 PERSON, WITH NO TRAINING REQUIRED
REGULAR MAINTENANCE CAN BE COMPLETED BY 1 PERSON WITH LIMITED TRAINING
REGULAR MAINTENANCE SHOULD NOT EXCEED 1-HOUR PER DAY
COMPLIES WITH EURO / OR US-EPA EMISSION STANDARDS
ABILITY TO INCINERATE WASTE PETROLEUM, OILS, AND LUBRICANTS
TEMPRATURES DURING THE COMBUTION PROCESS MUST EXCEED 1,500 °F FOR AT LEAST 1-HOUR
CAN BE TRANSPORTED TO AND FROM DEPLOYMENT LOCATION IN A 20-FOOT OR SMALLER SHIPPING ISO CONTAINER
CAPABLE OF 24 HOURS OF CONTINUOUS USE
AUTOMATIC LOADING SYSTEM
AUTOMATED ASH REMOVAL SYSTEM
GAS SCRUBBING SYSTEM
95% REDUCTION OF SOLID WASTE
OPERABLE WITH DIESEL, JP8, OR FUEL OIL
CAPABLE OF BURNING 4 UNITS OF WASTE PER UNIT OF FUEL
ABLE TO INCINERATE COMBUSTIBLE WASTE TO INCLUDE: PAPER, PLASTIC, CARDBOARD, FOOD, USED OILS, SLUDGE, OILY RAGS, AND WOOD PALLETS.
NO PRE-TREATMENT OF WASTE REQUIRED
VENDOR REPAIR OFFERED AT POINT OF SHIPMENT
FIVE (5) YEAR COMPONENT WARRANTY FROM DATE OF ACCEPTANCE Technical Specifications
OPERATION MANUAL AND TRAINING MANUAL FOR EACH INCINERATOR PROVIDED AS PART OF BID PACKAGE
SET UP AND INSTALLATION INSTRUCTION MANUALS PROVIDED AS PART OF BID PACKAGE
BLUE PRINT/ SCHEMATIC PROVIDED THAT OUTLINES THE PHYSICAL DIMENSIONS OF THE 20-FOOT CONTAINERIZED INCINERATORS
DELIVERY PLAN TO EXPLAIN THE MOVEMENT OF 20-FOOT INCINERATORS FROM POINT OF ORIGIN TO CAMP ARIFJAN, KUWAIT
MOBILITY PLAN TO EXPLAIN HOW TO MOVE 20-FOOT INCINERATORS FROM BASE TO BASE WITHIN US ARMY CENTRAL COMMAND THEATRE
INCINERATORS COMPOSED WITH HEAVY DUTY WELDED CONSTRUCTION
EACH INDIVIDUAL UNIT OPERATED AND TRANSPORTED IN A 20-FOOT ISO SHIPPING CONTAINER

Key Features:

HICLOVER, Nanjing Clover Medical Technology Co.,Ltd, supply system solutions for medical environmental

protection, animal and pet cremation engineering, other municipal solid waste incineration project.

We supply single combustion chamber, double combustion chambers, three combustion chambers and multi-combustion

chambers waste incinerators for laboratory, clinic, hospital, medical center, hygiene clinical waste destruction with medical

disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and bandages,

sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, etc.

Our range of incinerators cater for small to large scale animal cremation related businesses, such as poultry farms,

cattle farms, sheep farms, pig farms, stables, kennels, testing laboratory, catteries, pet crematoriums.

The incinerator burn waste in primary combustion chamber and burn the smoke from primary combustion chamber

again to make sure environmentally friendly with no black smoke, smelless, reduce pathogenic bacteria infection.

System solutions for medical waste environmental, including waste incineration, smoke emission treatment,

high-temperature sterilization, ultraviolet sterilization lamp, waste shredder, needle destroyer, medical waste package, sharp containers, etc.

Key Features:

Q: what is kind of waste can use in this equipment?
A: This equipment for medical waste, pet animal, Municipal waste, live waste. Prohibit any explosive and radiation material, liquid waste and gas waste.

Q: Incinerator Smoke Standard
A: China Government Standard: No.GB18484-2001.

Q: Treatment capacity
A: Average Capacity calculated by medical waste(lower calorific power (L.C.P): 3.0TH Kcal/Kg per hour),
not mean any waste material. The animal/pet combustion rate around 2/3 of average capacity.

Clover incinerator use time per day up to 24 hours. Between each feed/combustion time, there are about 0.5-1 hours cooling time and time for feeding waste. Actual combustion time per day is around 16 hours.
The lifetime of incinerator between 5-10 year according to use.

Generally, we proposal small laboratory, small clinic use capacity under 20 kgs per hour. When incinerator
use in hospital, please calculate the waste output capacity around 2kgs per people per day. If there are
200 sickbed in the hospital, that’s mean you need one incinerator capacity around 400kgs per day, change
to capacity per hour is around 30-40 kgs per hour. According the operation time per day, waste material,
budget, development, etc, you can use capacity from 30-50 kgs per hour incinerator.
*How to calculate Animal Cremation Burn Rate: 2/3 of the medical waste.

Q: Assembly and Testing
A: We supply all documents and incinerators easy to installation and operation. Customer can send people
come to our factory to learn installation and operation. Generally, We do not send engineer to local
site if not request. The dispatch cost is extra according to order.

Q: Combustion Temperature
A: The first combustion chamber: 800-1000 centi degree.
The second combustion chamber: 1000-1200 centi degree.

Q: Incinerator Control Mode
A: Default Control mode is common control case. PLC mode according to model and order.

Q: Operation and maintenance costs
A: Operation cost according to fuel consumption rate and power/staff, etc.

Annual around $500-$1000usd per year maintenance according model, use situation.

One person can service 02 unit incinerators. The staff should have basic electrician knowledge to
operate/inspect/maintaince incinerator/burner/blower according to operation user guider, and
know risk of medical waste to protect worker self with necessary protection element.

Q: The Residency time in secondary combustion chamber
A: 02 sec.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Provide incinerator with a capacity of not less than [75] kg per hour, based on operating the incinerator no
more than 8 hours continuously per day, and to be suitable for burning medical waste parts which have a water content as high as 85 percent by weight.

Provide furnace with an inside volume, exclusive of the space occupied by the refractory hearths and walls,
of not less than 2 cubic meters with a primary combustion chamber volume above the burning hearth of not
less than 1.5 cubic meters, Provide a complete waste burning system including combustion air fan, primary
and secondary burners, air distribution and burner controls, ducts, breeching, stack, bottom ash conveyor
and collection, feed rams, fire tube water tube, air compressors, slurry pumps, water pumps, fly ash collection system.

Construct the primary chamber with a steel casing supported by a steel frame, and provide with insulation
and refractory. Make the casing with 5 mm sheet steel minimum, conforming to ASTM A1011/A1011M and
reinforced to withstand internal pressures without deflection or damage to refractory or other components
of the incinerator. Construct the frame and all reinforcing members of steel conforming to ASTM A36/A36M. Provide a free-standing frame capable of supporting the weight of all components of the incinerator, including doors,
burners, breeching, stack connections, and appurtenant assemblies without binding or warping.
Make the frame and casing of all welded construction, completed and erected prior to installation of the

refractory and insulation. Provide all access doors and parts with seals to prevent emission of smoke or
admission of significant amounts of air during incinerator operation, and a primary chamber with no
openings which would permit leakage of waste fluids.

HICLOVER now offer a full range of containerized incineration systems, placing us at the forefront of the latest transportation and industrial trends. Containerization enables immediate waste management as the units are
pre-assembled and pre-installed.
Containerization is the most feasible and viable option in contrast to the construction of on-site facilities and housing structures,
eliminating the man power and costs involved. The system has the added benefit of
total mobility (both local and international), and is ideal for military and civil camps and remote locations where infrastructure is scarce.

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

The process of incineration provides the advantage of volume reduction as well as the ability to dispose of recognizable waste and sharps.
On site incinerators provide a quick and easy way of disposing medical waste. This is the most widely accepted and feasible method of
managing highly infectious waste.
The incinerator will be of the controlled air type, designed for (6-8) hour-day operations and rated at 75 kg per hour. The incinerator
plant will include the following:
Continuous loading using hydraulic ram feeder o Burners and fuel system
Fans
Pumps
Controls and Instrumentation o Chimney and flue connections
Incinerator loader for loading hoppers or carts o Ash handling equipment
Waste weighing equipment
Wheeled 2.0m3 waste storage hoppers (number to be decided by hospital managers)
Incinerator loader
Incinerator building, including fire safety equipment
Provide sensors conforming to ISA MC96.1, Type K, in the combustion chamber or as otherwise directed, with a thermocouple suitable for
continuous operation and control at temperatures up to 1260 degrees C 2300 degrees F accurate to 0.75 percent, of sufficient length to be
inserted 150 mm 6 inches into the furnace. Provide the thermocouple with an adjustable flange and a high- temperature metal alloy, closed-
end, protecting tube suitable for insertion into the furnace without support of the projecting end. Supply thirty meters one hundred feet
of 1.52 mm 16- gauge compensating lead wire with a weatherproof braid for connecting the thermocouple to the instrument, so that the
installed unit indicates gas passage temperatures and controls burner operation.

The medical waste to be disposed in the incinerator is a mixture of paper, plastics, Type 4 waste, etc., and is of a widely varying nature
with a Btu content which may well exceed the usually reported value of 2,326,000 J/kg (1000 Btu per pound). Prior to developing final
design of the incinerator, detailed waste classification should be made, amounts of glass, metal, paper, plastics, organic, rubber, cloth,
wood, moisture, etc., in the waste and the variable joule (Btu) content.
The waste stream at each installation must be analyzed and the information should be utilized for the final design.
Provide an incinerator with a solid hearth in the primary combustion chamber where partial burning and conversion of the combustible
organic matter occurs, and a secondary combustion chamber that consumes the combustible gases and entrained combustible particles, with
gas-tight shell construction. Provide an incinerator suitable for indoor installation including totally enclosed electric motors, and
corrosion and moisture protection, and equipped for mechanical charging and operation. Incinerator shall be a complete package-type unit,
factory fabricated and assembled operating under negative air pressure and ready for attachment of all utility connections.
Provide an incinerator capable of burning typical medical waste including paper, plastics of various kinds, and a small fraction of Type 4
(Pathological) waste.

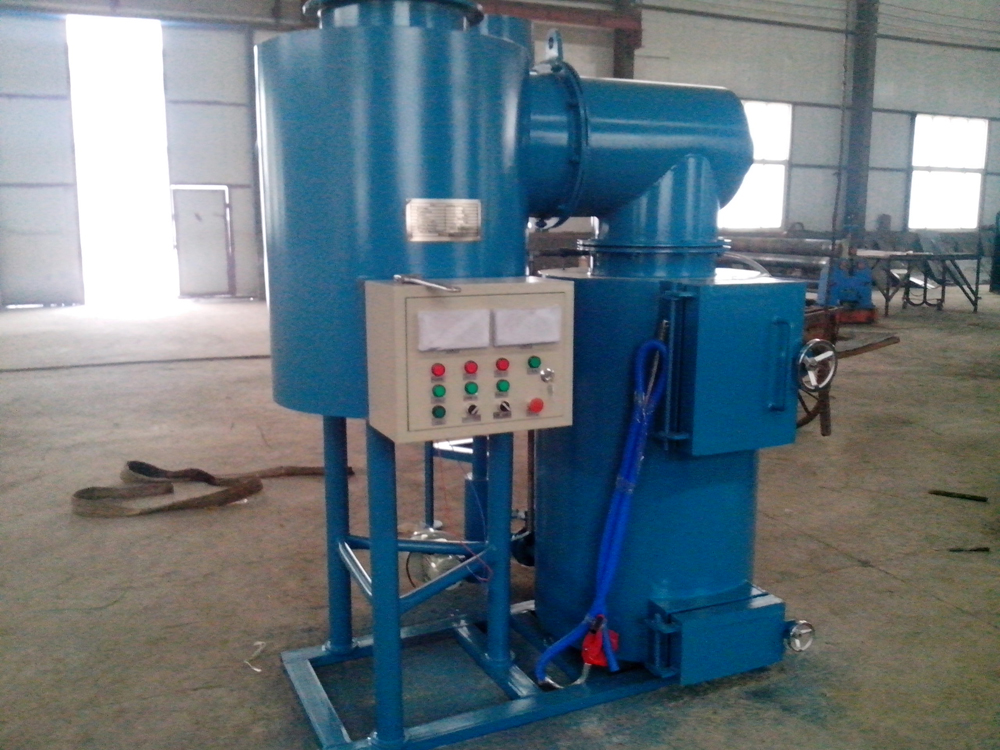

YDC incinerator is latest design for waste treatment, include medical waste, animal cremation and other solid waste.
This equipment quality structural for kinds of site, like hospital, environmental department, animal cremation agencies,
etc. CLOVER Incinerator supply updated models with dual combustion chamber, mix combustion chamber and smoke
filter chamber with refractory lines, and the combustion chamber temperature up to 1200 deg C.

Items	Specification
YDC Model	YD-10C / YD-20C / YD-30C / YD-50C
Main Product List	Primary Combustion Chamber
	Secondary Combustion Chamber
	Mix Combustion Chamber
	Smoke Filter Chamber
	Incinerator Common Control Case
	Stainless Steel Chimney
	Italy oil/gas burner: 02 units
	Oil Tank (if oil fuel)

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

General waste is an unwanted refuse material or substance. It may consist of materials from community or household activities (municipal, domestic or camp waste) or from industrial activities (manufacturing, mining or agricultural).

Worldwide, the problem of waste accumulation is reaching threatening proportions. Landfill options are showing more and more weaknesses and are becoming extremely expensive. They are not an efficient solution. As a natural process, nature is converting landfill waste into highly dangerous matter.

Incineration is the most obvious solution for total destruction of municipal waste, avoiding all the direct and indirect risks associated with other disposal methods.
Incineration perfectly fits into a trend of treating waste in a safe way, and if possible, at the same place where it was generated to avoid cross-contamination risk and to keep waste treatment costs at acceptable level.

Items/Model	TS10(PLC)	TS20(PLC)	TS30(PLC)	TS50(PLC)	TS100(PLC)
Burn Rate (Average)	10 kg/hour	20 kg/hour	30 kg/hour	50 kg/hour	100 kg/hour
Feed Capacity(Average)	20kg	40kg	60kg	100kg	200 kg
Control Mode	PLC	PLC	PLC	PLC	PLC
Combustion Chamber	100L	210L	330L	560L	1200L
Internal Dimensions	50x50x40cm	65x65x50cm	75x75x60cm	100x80x70cm	120x100x100cm
Secondary Chamber	50L	110L	180L	280L	600L
Smoke Filter Chamber	Yes	Yes	Yes	Yes	Yes
Feed Mode	Manual	Manual	Manual	Manual	Manual
Voltage	220V	220V	220V	220V	220V
Power	0.5Kw	0.5Kw	0.5Kw	0.7Kw	0.7Kw
Oil Consumption (kg/hour)	5.4–12.6	7.8–16.3	10.2–20	12.1–24	14–28
Gas Consumption (m3/hour)	6.2–11.4	8–15.7	9.8–20	9.9–26.1	10–32.2
Temperature Monitor	Yes	Yes	Yes	Yes	Yes
Temperature Protection	Yes	Yes	Yes	Yes	Yes
Oil Tank	100L	100L	100L	100L	200L
Feed Door	30x30cm	45x40cm	55x50cm	70x55cm	80x60cm
Chimney	3Meter	3Meter	5Meter	5Meter	10Meter
Chimney Type	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
1st. Chamber Temperature	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃	1000℃-1200℃
Residency Time	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.	2.0 Sec.
Gross Weight	1500kg	2200kg	3000kg	4500kg	6000kg
External Dimensions	140x90x120cm	160x110x130cm	175x120x140cm	230x130x155cm	260x150x180cm

Waste feed system into the combustion chamber batch or continuous loading: For continuous loading, the automatic charging ram or auger feed system shall be capable of injecting small amounts of waste at frequent intervals and should be able to prevent waste from being fed when the combustion chamber temperature is less than 850°C. In addition, the waste feed should only be able opened at or below 50°C in an ambient temperature of 21°C.

Primary combustion chamber: Shall be constructed with a casing (reinforced to withstand internal pressures without deflection or damage to the refractory or other components) supported by a structural frame and provided with refractory lining and insulation

Access doors, openings, and gaps: All access doors, openings, and gaps shall be sealed to prevent emission of smoke and exhaust gas and to block admission of air during incinerator operations.
Doors exposed to flame or direct heat of combustion gases shall be lined with the same type and thickness of refractory lining and insulation as that used in the combustion chamber
Grate system for the primary chamber Moving grate, traveling grate, reciprocating grate, or rotating drum grate
Primary combustion chamber temperature # 850°C with no cold spots

Secondary combustion chamber: Shall be constructed with an exterior casing (reinforced to withstand internal pressures without deflection or damage to the refractory or other components) and provided with refractory lining and insulation
Secondary combustion chamber temperature 1100°C or higher
Secondary combustion chamber residence time # 2 seconds after the last injection of air in the secondary chamber

WWW.HICLOVER.COM

Waste Incinerators ｜Auto Roll Air Filters

WWW.HICLOVER.COM｜Waste Incinerators ｜Auto Roll Air Filters

Nanjing Clover Medical Technology Co.,Ltd.

Tel: +86-25-8461 0201
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]

The incinerator should be a modern waste disposal unit, designed to bum medical waste in a clean and environmentally efficient manner. It should employ a temperature based logic control system to provide optimum control of the operating conditions and incorporate a high capacity thermal oxidizing secondary chamber. It should be designed to retain the exhaust gases, for at least 2 seconds to ensure the unit’s effective destruction of the combustion products.

The primary combustion chamber is the main structure of the incinerator, fabricated from mild steel plate and stiffened with rolled steel sections. It is carried from the floor level on a substantial steel support frame. Internally the shell is lined with calcium silicate insulation and a hot face combination of super duty brickwork or high strength castable.
The primary combustion chamber must ensure minimum exit temperature is not less than 850°C.
One Manual Load Incinerator comprising:

Manual Loading door
Horizontal solid hearth, refractory lined primary combustion chamber. Approximate dimensions 800 mm diameters x 2100mm long
Full sized bulk load/ash removal door
1 off diesel-fired ignition burner — temperature controlled
1 off combustion air supply fan and distribution system, automatic control
High capacity secondary combustion chamber with residence time not less than 2 seconds @ >850°C
1 off diesel-fired afterburner — temperature controlled
Control panel — automatic operation
Temperature indication primary and secondary chambers 0-1200°C
Refractory lined flanged chimney to a height of 10M above ground level
50kg/hour at a nominal calorific value of 4,000 kcal/kg and an average bulk density of I20kg/ M3 for general waste and l60kg/ M3 for health care waste.

Should be manufactured from refractory lined mild steel or high quality air-cooled stainless steel. The chimney/stack should have a minimum height of 10 meters above ground level.

Fully packaged oil type, complete with electric ignition and flame failure controls, wired with continuous running fan and complete with all valves, fan and motor.
Maximum rating: at least 450kW/hour
Burner: arranged for on/off operation
Maximum consumption: at least 6 litres/hour
Average consumption: at least 3 litres/hour

Fully packaged oil type, complete with electric ignition and flame failure controls wired with continuous running fan and complete with all valves, fan and motor.
Maximum rating: at least 450kW/hour
Burner: arranged for on/off operation
Maximum consumption: at least 9 litres/hour
Average consumption: at least 4.5 litres/hour
