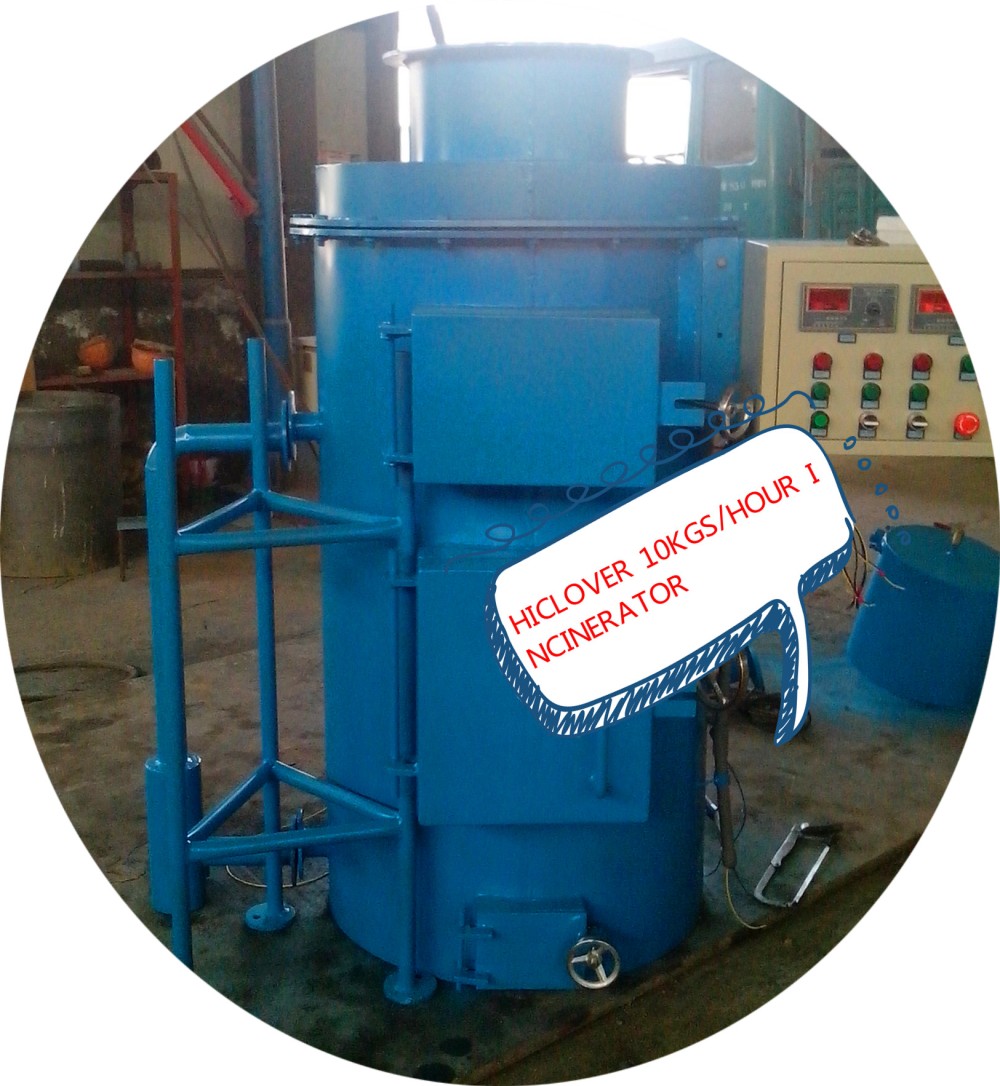

Smallest waste incinerator for small hospital
average 10kgs per hour.
with double(2) sets burner.
Equipment Technical Specifications |
|
Model |
YD-10 |
Feed Capacity |
Average 20 kgs per feed |
Burning Rate |
Average 10 kgs per hour |
Burning Time per Feed |
2 hours |
Voltage |
220V |
Fuel |
Diesel oil |
Burner |
Italy Burner |
Feed Mode |
Manual |
Fuel consumption (Oil) |
5.4-12.6 Kgs/Hour |
External Dimensions |
100 x 100 x 160cm (mainbody) |
Internal Dimensions |
50 x 50 x 80cm(Primary Chamber) |
Waste combustion chamber |
200Liters |
Post Combustion Chamber |
100Liters |
Oil Tank Capacity |
50 Liters |
Door Opening |
35 x 35cm |
Chimney |
3.0M |
Gross Weight |
1000kgs |
Chamber Material |
Refractory Concrete |
Max. Heat Value |
126,000Kcal/Hr. |
Operation Technical Specifications |
|
Chamber temperature |
8000C -10000C |
Chamber Anti-Rate
|
13500C |
Residency time
|
0.5 Sec. |
Burning efficiency |
>98% |
Waste Lower Calorific Power |
3000Kcal |
