Pet crematorium up to 200KG/day

Animal Crematory Incinerator

Capacity: Average 80kgs per feeding

Item Specification
Model A900
Internal Dimensions 120 x 90 x 85 CM
Suit for Animal Cat – yes Dog – yes Pig – small Cow – no
Main Product List Primary Combustion Chamber
Secondary Combustion Chamber
Mix-Combustion Chamber
Smoke Filter Chamber
Incinerator Control Case
Chimney:5.0Meters

*(upgrade to Stainless Steel, free cost)
Italy oil/gas burner: 03 sets
Oil Tank (if oil fuel): 500Liters

Model A900

Burning Rate Average 30 kgs/hour
Feed Capacity Average 80 kgs/feeding
Primary Combustion Chamber 900 Liters
Secondary Combustion Chamber 300 Liters
Mix Combustion Chamber Yes
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V/380V
Power 1.5 Kw
Fuel Type Diesel Oil/ Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) Average 34 kg/hour
Gas Consumption (Natural Gas) Average 41 m3/hour
Internal Dimensions 120 x 90 x 85 cm (primary chamber)
External Dimensions 200 x 160 x 310 cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 500 Liters
Door Opening 60 x 80cm
Chimney Length 5.0 Meters
Chimney Type Stainless Steel
Combustion Chamber Material Refractory Concrete Cement(No Brick)
Equipment Gross Weight 6000 kgs
Operation Technical Specifications
Primary Chamber Temperature 800℃–1000℃
Secondary Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Burning Efficiency ＞98%
Waste Lower Calorific Power 3000Kcal

Burning capacity 50kg/hr with wet scrubber with dual fired burner

This model is small-scale waste incineration equipment for small waste output.
Construction is dual/double combustion chamber with 02 units oil/gas burner.
Waste feed chamber is around 900Liters (0.9m3, YD-50). Primary & Secondary
combustion chambers and included mix-combustion chamber. Waste load on the
bottom of chamber. Incinerator panel control suit for local operation.

Model YD-50 with wet scrubber

Burning Rate Average 50 kgs/hour
Feed Capacity Average 100 kgs
Primary Combustion Chamber 900 Liters
Secondary Combustion Chamber 200 Liters
Mix Combustion Chamber Yes
Smoke Filter Chamber Wet Scrubber(WashingTower)
Feed Mode Manual
Voltage 220V
Power 7 Kw
Fuel Type Diesel Oil/ Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) 16.9 kg/hour
Gas Consumption (Natural Gas) ***
Internal Dimensions 120x90x85cm (primary chamber)
External Dimensions 400x200x230cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 300 Liters
Door Opening 62 x 68cm
Chimney Length 5.0 Meters
Chimney Type Stainless Steel
Equipment Gross Weight 6000 kgs
Operation Technical Specifications
Primary Chamber Temperature 800℃–1000℃
Secondary Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Burning Efficiency ＞98%
Waste Lower Calorific Power 3000Kcal

Burning capacity 50kg/hr with wet scrubber with dual fired burner

This model is small-scale waste incineration equipment for small waste output.
Construction is dual/double combustion chamber with 02 units oil/gas burner.
Waste feed chamber is around 900Liters (0.9m3, YD-50). Primary & Secondary
combustion chambers and included mix-combustion chamber. Waste load on the
bottom of chamber. Incinerator panel control suit for local operation.

Model YD-50 with wet scrubber

Burning Rate Average 50 kgs/hour
Feed Capacity Average 100 kgs
Primary Combustion Chamber 900 Liters
Secondary Combustion Chamber 200 Liters
Mix Combustion Chamber Yes
Smoke Filter Chamber Wet Scrubber(WashingTower)
Feed Mode Manual
Voltage 220V
Power 7 Kw
Fuel Type Diesel Oil/ Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) 16.9 kg/hour
Gas Consumption (Natural Gas) ***
Internal Dimensions 120x90x85cm (primary chamber)
External Dimensions 400x200x230cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 300 Liters
Door Opening 62 x 68cm
Chimney Length 5.0 Meters
Chimney Type Stainless Steel
Equipment Gross Weight 6000 kgs
Operation Technical Specifications
Primary Chamber Temperature 800℃–1000℃
Secondary Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Burning Efficiency ＞98%
Waste Lower Calorific Power 3000Kcal

100-150kgs Burning rate with Secondary burning to be use in the hospital

Oil tank with 2000Liters capacity

Items/Model TS150(PLC)

Principle Waste Incineration Treatment
Burn Rate Average 100-150 kg/hour
Feed Capacity Average 750kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Main Body Steel 8mm thickness
Chamber Material High Alumina Fire Brick Wall, 1750℃ Rate
Paint for outside face 800°C Rate
Combustion Chamber 1570L
Internal Dimensions 150x100x105cm
Secondary Chamber 750L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 210/230V 50/60Hz
Power 0.9Kw
Oil Consumption (Liter/hour) Average 14(D.O)
Gas Consumption (m3/hour) ***

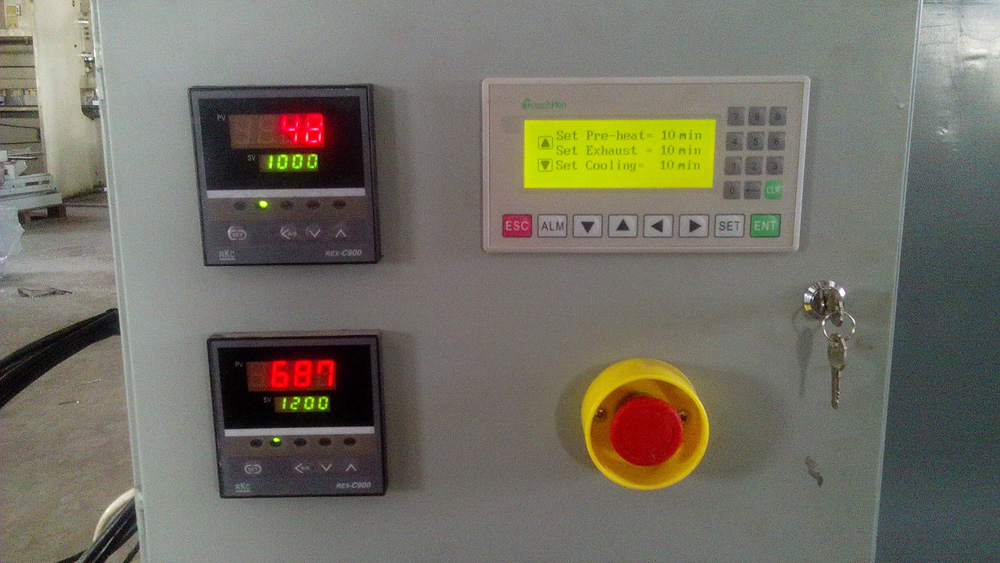

Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 300L
Feed Door 80x60cm
Chimney 10Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 8500kg
External Dimensions 300x160x280cm(without chimney)

Containerized Mobile Incinerator CA100

Incinerator Model CA100, Overview

100Kg/Hour Burning rate with Secondary burning Capacity

This model is small-scale medical waste incineration equipment. Construction is dual/double
combustion chamber with 02 units oil burner, batch load incineration equipment. Animal feed
chamber is 560Liters (Model CA100). Primary & Secondary combustion chambers and smoke
filter chamber with firebrick and refractory concrete chamber. Batch load on the bottom of
chamber. Incinerator panel control suit for local operation.

Containerized Mobile Incinerator CA100

Incinerator Model CA100, Overview

100Kg/Hour Burning rate with Secondary burning Capacity

This model is small-scale medical waste incineration equipment. Construction is dual/double
combustion chamber with 02 units oil burner, batch load incineration equipment. Animal feed
chamber is 560Liters (Model CA100). Primary & Secondary combustion chambers and smoke
filter chamber with firebrick and refractory concrete chamber. Batch load on the bottom of
chamber. Incinerator panel control suit for local operation.

50 KG/HR BIOMEDICAL INCINERATOR

Waste Incineration Treatment Burn rate (rate of waste incineration) -at least 50 kg per hour

Oil tank

smoke filter chamber

Items/Model TS100(PLC)

Principle Waste Incineration Treatment
Burn Rate Average 50-100 kg/hour
Feed Capacity Average 200kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Combustion Chamber 1000L
Internal Dimensions 120x100x90cm
Secondary Chamber 540L
Smoke Filter Chamber Optional
Feed Mode Manual
Voltage 220V
Power 3.0Kw
Oil Consumption (kg/hour) Average 20.4
Gas Consumption (m3/hour) ***
Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 1800L
Feed Door 80x60cm
Chimney 6Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 7000kg
External Dimensions 260x150x180cm(Main Body)

Waste Incineration Treatment Incinerators Avg. 100kgs per hour

HICLOVER incinerator exert the advantages and discard the disadvantages of the same kind of equipment at domestic and abroad. It is an unique and international advanced medical waste incineration equipment. The equipment is small size, high efficiency, reasonable process, leading technologies and a high harmless degree, ideal garbage treatment equipment for hospital, laboratory, hotel, station, etc.

Items/Model TS100(PLC)

Principle Waste Incineration Treatment
Burn Rate Average 100 kg/hour
Feed Capacity Average 200kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Combustion Chamber 1200L
Internal Dimensions 120x100x100cm
Secondary Chamber 600L
Smoke Filter Chamber Yes(Dry Scrubber)
Feed Mode Manual
Voltage 220V
Power 0.7Kw
Oil Consumption (kg/hour) average 20.4
Gas Consumption (m3/hour) average 24.5
Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 200L
Feed Door 80x60cm
Chimney 10Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 6000kg
External Dimensions 260x150x180cm

Medium Scale Solid Waste Incinerator

Double Combustion Chamber,Double Italy Burner,Smoke Filter Included,Burning Rate: 50-200kgs per hour optional,Primary Combustion Chamber: 1.57M3(1570Liters),Incinerator Mainbody steel: 8mm thickness,Paint for outside face: 800°C Rate,Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate,Idea for campsite average or below 600 people,Chimney: 10 Meters, Stainless steel…

Items/Model TS150(PLC)
Principle Waste Incineration Treatment
Burn Rate Average 150 kg/hour

*(50/100/200kgs/hour optional)
Feed Capacity Average 750kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Main Body Steel 8mm thickness
Chamber Material High Alumina Fire Brick Wall, 1750℃ Rate
Paint for outside face 800°C Rate
Combustion Chamber 1570L
Internal Dimensions 150x100x105cm
Secondary Chamber 750L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 210/230V 50/60Hz
Power 0.9Kw
Oil Consumption (kg/hour) Average 20.4-28.0(D.O)
Gas Consumption (m3/hour) ***
Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 300L
Feed Door 80x60cm
Chimney 10Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 8500kg
External Dimensions 300x160x280cm(without chimney)

Medium Scale Solid Waste Incinerator

Double Combustion Chamber,Double Italy Burner,Smoke Filter Included,Burning Rate: 50-200kgs per hour optional,Primary Combustion Chamber: 1.57M3(1570Liters),Incinerator Mainbody steel: 8mm thickness,Paint for outside face: 800°C Rate,Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate,Idea for campsite average or below 600 people,Chimney: 10 Meters, Stainless steel…

Items/Model TS150(PLC)
Principle Waste Incineration Treatment
Burn Rate Average 150 kg/hour

*(50/100/200kgs/hour optional)
Feed Capacity Average 750kg/feeding
Control Mode PLC(Programmable Logic Controller Incinerator)
Main Body Steel 8mm thickness
Chamber Material High Alumina Fire Brick Wall, 1750℃ Rate
Paint for outside face 800°C Rate
Combustion Chamber 1570L
Internal Dimensions 150x100x105cm
Secondary Chamber 750L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 210/230V 50/60Hz
Power 0.9Kw
Oil Consumption (kg/hour) Average 20.4-28.0(D.O)
Gas Consumption (m3/hour) ***
Temperature Monitor Digital Display
Temperature Protection Yes
Oil Tank 300L
Feed Door 80x60cm
Chimney 10Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 8500kg
External Dimensions 300x160x280cm(without chimney)
